PSE 300 2VL-XL

PSE 300 2VL-XL

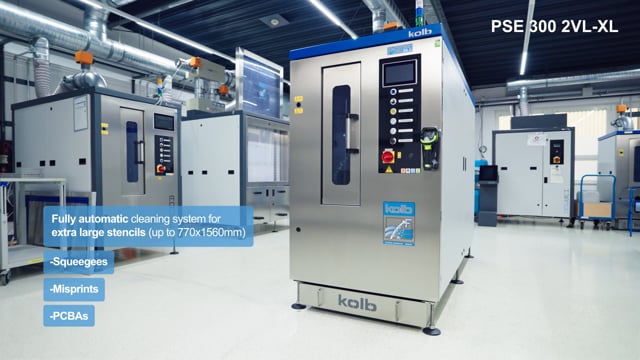

Fully automatic cleaning system with two circuits for extra large stencils

The kolb PSE economy line is a quality series of advanced cleaning systems, which focuses on all essential criteria for a qualified cleaning process and therefore stands for attractive purchase prices.

kolb PSE 300 2VL-XL is a fully automatic system especially for reliable precision cleaning of extra-large screens, stencils, PumpPrints or other flat products. It removes quickly and thoroughly contaminations such as SMD-paste, SMD-adhesive, flux residues, stabilizer materials, flux, oil, grease or dust.

Instead of one large stencil the system can also clean two regular sized stencils up to 770 x 770 mm (30" x 30") in one cycle.

PSE 300 2VL-XL is a German engineered and manufactured machine with ClosedLoop water reprocessing and a two-tank and two separate circuits configuration which ensures short cycle times and makes this system the perfect economic choice for the cleaning of extra-large and regular sized screens and stencils.

Highlights

Two tank system with two separate circuits
Comfortable push-one-button operation
Fully automatic 4step process: cleaning, rinsing (tap water), DI rinsing, CWA^® supercharger compression drying
Vertical rotor system with asynchronous spray rotors for thorough wetting (no blind spots)
Short cycle times due to placing the cleaning goods close to the spray rotors
Permanent filtration
ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
Water-free operation possible: Instead of water the system can use a suitable cleaning / rinsing detergent for rinsing
Process and service intervals PLC controlled
Event issuing and software control via high resolution 7" display with capacitative multi-touch
All safety relevant devices are standard features in the basic system configuration
Extremely compact - very small footprint

技术数据
Technology base	kolb PowerSpray^®
Control system (Display size)	PLC - Eaton (7“)
Standard capacity (per process cycle)	Stencils, screens up to 770 x 1.560 mm (30" x 61")
Process chamber dimensions	W 350 mm • D 1580 mm • H 920 mm
Clamping space for PCBA, Misprints etc.	H 600 mm x W 1200 mm
Max. stencil, carrier, washing frame size	H 770 mm x W 1560 mm
Circuits	2 Cleaning, Rinsing
Volume Tank A	100 l • Cleaning
Volume Tank B	100 l • Rinsing tap water
Max. cleaning temperature	50 °C (122 °F)
Filtration	up to three stages - 1. Full flow coarse filter < 2 mm, 2. Cascaded sediment filter inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent)
Drying System	CWA^® 增压器
Drying temperature range	Compressed warm air
Power supply	400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz
Power consumption	4 kW
Supply connection 1 (tap water)	1/2“
Supply connection 2 (DI water)	1/2“
Supply connection 3 (Compressed Air)	8 mm (87 - 116 psi - 100 l / min)
Empty Weight	647 kg (1,427 lbs)
Footprint	950 mm x 2200 mm (37.40″ x 86.61″)
